SOLAR TYPE:

AOL: MS-20-2KP

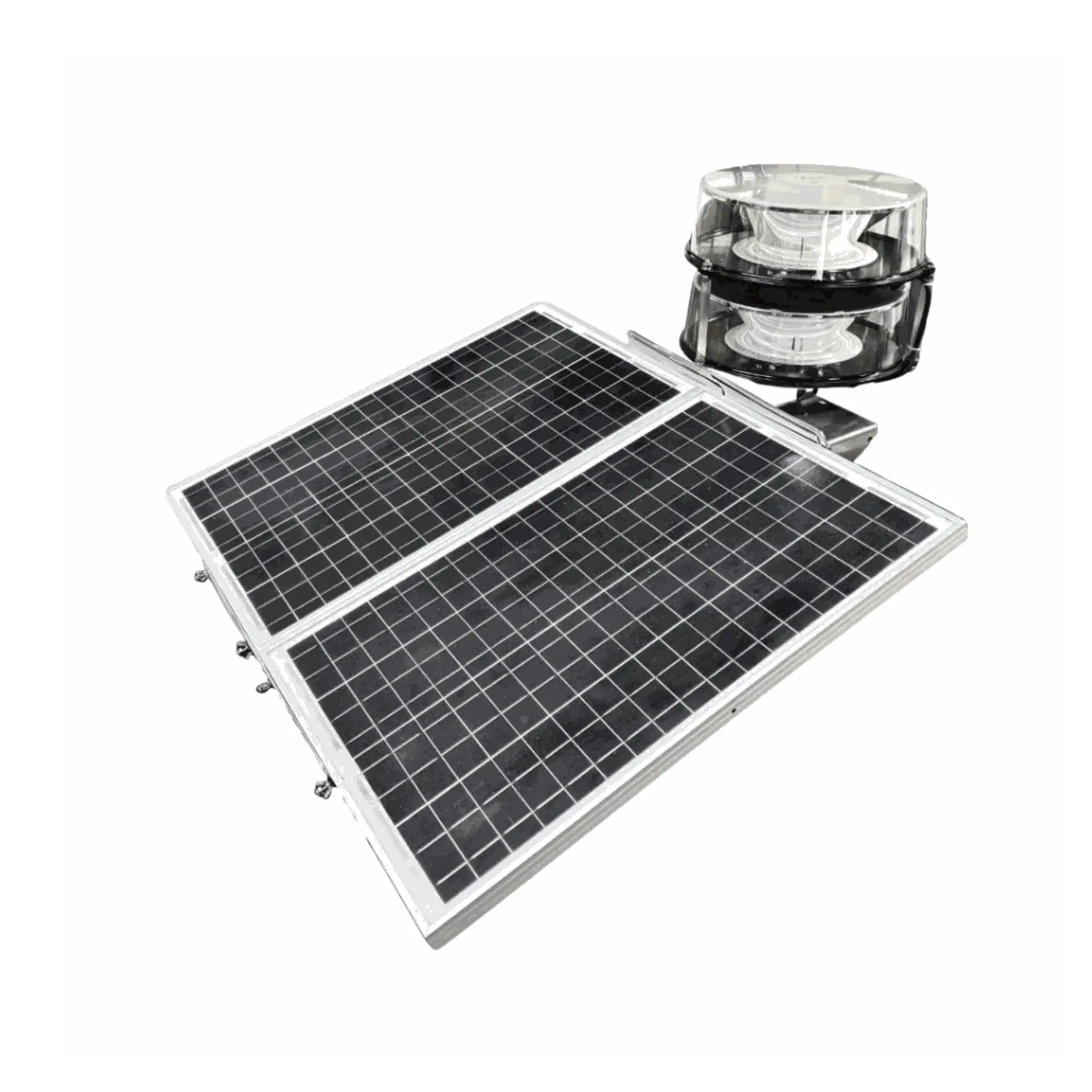

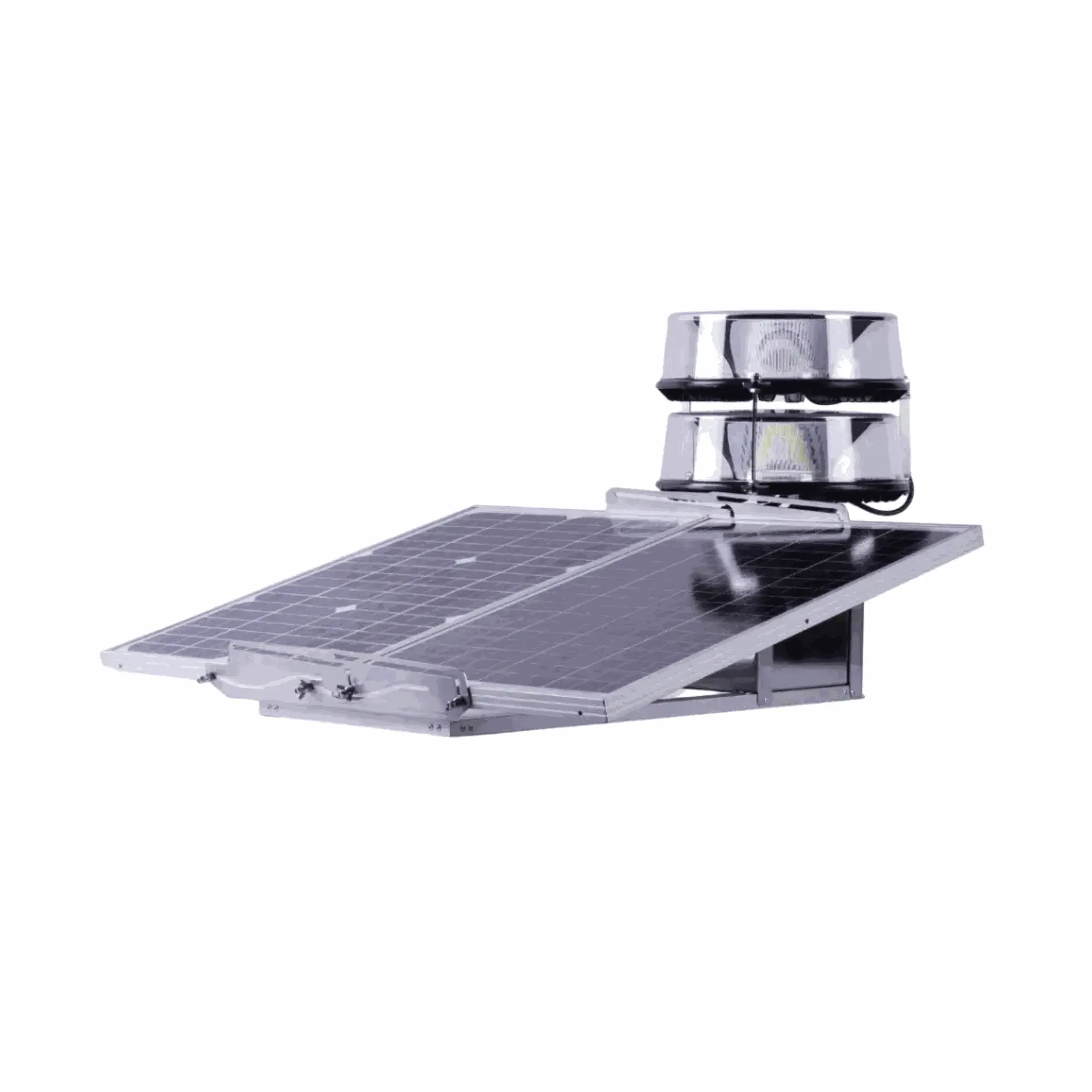

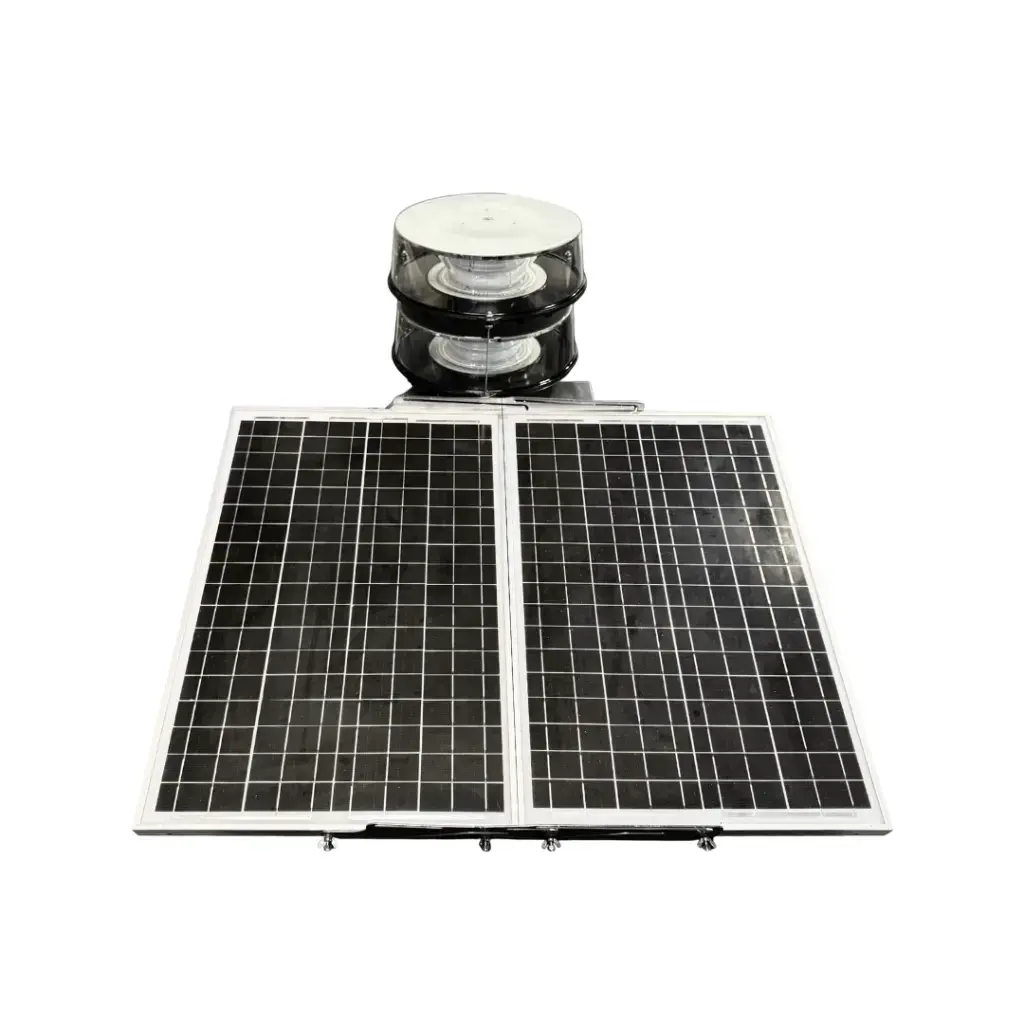

Introducing our Solar Powered Medium Intensity Type AB Aviation Obstruction Light – featuring continuous 24-hour operation with white and red color flashing. Its innovative compact design and extended solar panel provide efficient power supply. Compliant with ICAO and CAAM standards, this light is ideal for structures above 105 meters.

Elevate aviation safety with our reliable Solar Powered Medium Intensity Type AB model, providing essential warning signals day and night.

Download Brochure PDF

Everything you should know about our AOL: MS-20-2KP

Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.

Features

10Cd Brightness

IP67 Rating

Surge Protection

Power
Savings

Battery

Powered

Photo Sensor

Solar

Energy

20 - 60 Flashing

Compact PV Design

Compliance

ICAO

CAAM

SIRIM

Application

Building

Transmission Line

Telecom Towers

Specifications

Engineered to Meet Standards. Designed for Reliable Performance

Compliance and Certifications

ICAO Annex 14.
CAAM ASD 404 & CAD 14
FAA L-865

**Dimension (LWH) & Weight**

276x276x225mm (Lamp Head)
721x690x207mm (Casing Assembly)
3.5kg (Lamp Head)
7.6kg (Solar Panel)
10.0kg (48V Battery Set)

Performed Test

Rain Test - 130mm/h
Wind Test - 150km/h
Humidity Test - 95% RH (+55˚C for 72h)
Operational Test - 1000h
Leakage Current Test - < 10µA
Lightning Surge Test - 6kV 1.2/50μs, 3kA 8/20μs

Characteristics

Light Type - Low Intensity Type AB
Light Source - 168 (White), 80 (Red) SMD LED
Lifespan - ≥ 100,000h
Effective Intensity - 20,000 Cd (Day) / 2,000 Cd (Night)
Light Color - White (Day) / White (Night)
Horizontal Beam - 360˚
Vertical Beam - >3˚

Operation

Mode - Flashing
Flashing Rate - 20 - 30 fpm
Temperature: -20˚C ~ +60˚C
IP Rate - IP67
Rating - 30W x 2
Battery Autonomy - Up to 5 days

Material

Cover - Automotive Grade PMMA
Body - ED Coated Die Cast Aluminum
Battery Compartment - Stainless Steel
Base Frame - Aluminum
Solar Panel Type - Monocrystalline

Ready to elevate aviation safety with reliable lighting solutions?

Let's turn your vision into reality. Contact us today to request for quotation or connect with our company.
